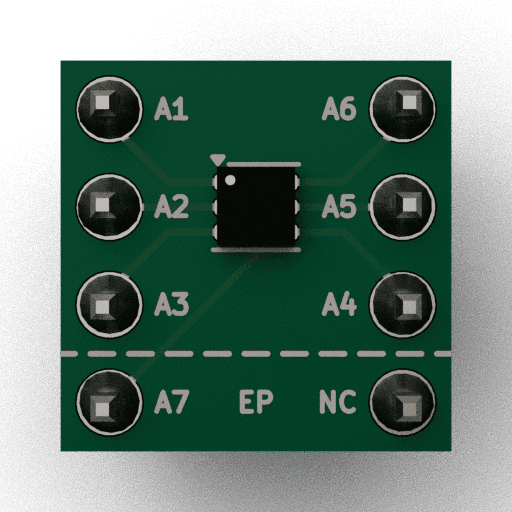

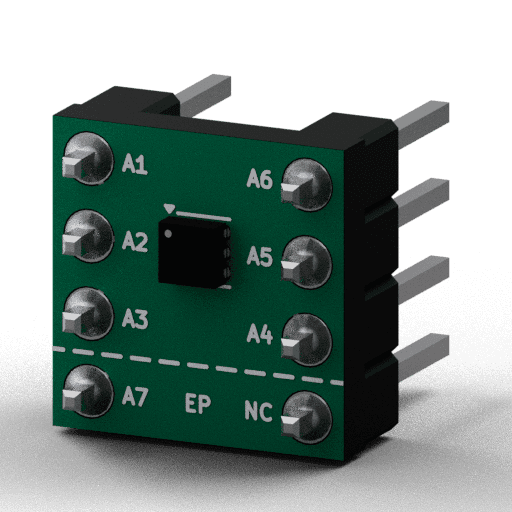

TMP117AIDRVR Breakout
TEMP SENSOR ±0.1°C I2C 6-WSON
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
High-accuracy digital temperature sensor with ±0.1°C accuracy from -20°C to 50°C and 16-bit resolution (0.0078°C LSB). Features I2C/SMBus-compatible interface, programmable alerts, 48-bit EEPROM, and ultra-low 3.5µA typical power consumption. Operates 1.7–5.5V across -55°C to 150°C range with medical-grade NIST traceability.
Package: WSON-6-1EP (2×2mm, EP) · 6 pins
Why does this need a breakout?
WSON-6 regulators feature 0.65mm pitch pads that are difficult to hand-solder and buried under the package body, making them impossible to prototype on breadboards. A breakout board brings these compact LDO and boost converter ICs into reach by providing large through-hole connections and integrating decoupling capacitors, letting you evaluate multiple fixed or adjustable voltage outputs without rework challenges.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Texas Instruments |
| Part Number | TMP117AIDRVR |
| Package | WSON-6-1EP (2×2mm, EP) |
| Pin Count | 6 |
| Output Type | I2C/SMBus |
| Sensor Type | Digital, Local |
| Voltage - Supply | 1.8V ~ 5.5V |
What's Included
BILL OF MATERIALS
- 1x TMP117AIDRVR soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers
Breakout Board Design
PCB SPECIFICATIONS
