SN74LVC1G17DBVR Breakout
SCHMITT BUFFER SINGLE NON-INVERT SOT-23-5
View in 3D
£2.91
Out of stock
FREE UK SHIPPING on orders over £30
Estimated dispatch time will be calculated after checkout and emailed to you as soon as possible.
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Single-gate Schmitt-trigger buffer IC operating from 1.65V to 5.5V with high noise immunity. Provides logic buffering and wave-shaping with 4.6ns propagation delay at 3.3V and ±24mA output drive. Ideal for signal conditioning in portable consumer electronics, audio devices, and power supply applications.
Package: SOT-23-5 · 5 pins
Why does this need a breakout?
This 0.95 mm pitch SMD package is incompatible with breadboards and difficult to hand-solder. A breakout board brings the five pins to standard 0.1″ spacing, enabling rapid prototyping without reflow equipment. Essential for evaluating precision analog ICs like current-sense amplifiers in development circuits.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Texas Instruments |
| Part Number | SN74LVC1G17DBVR |
| Package | SOT-23-5 |
| Pin Count | 5 |
| Input Type | Schmitt Trigger |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 1 |
| Output Type | Push-Pull |
| Voltage - Supply | 1.65V ~ 5.5V |
What's Included
BILL OF MATERIALS
- 1x SN74LVC1G17DBVR soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

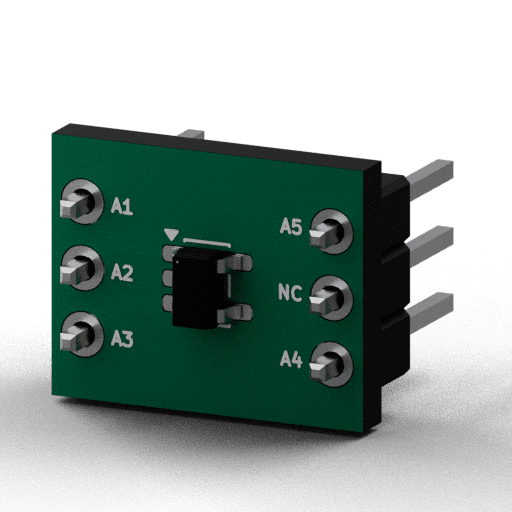

Breakout Board Design
PCB SPECIFICATIONS
