PCA9306DCTR Breakout
IC XLTR I2C BIDIR 1.2-5V SM8

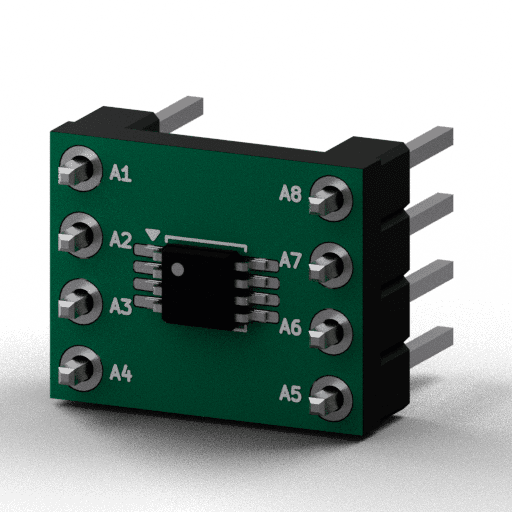

View in 3D
£3.53
Out of stock
FREE UK SHIPPING on orders over £30
Estimated dispatch time will be calculated after checkout and emailed to you as soon as possible.
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Dual bidirectional I2C/SMBus voltage-level translator for mixed-mode applications. Translates between 1.2V to 5V rails without requiring a direction pin, with <1.5ns propagation delay and 3.5Ω ON-resistance. Includes enable control for bus isolation and lockup-free operation, suitable for servers, routers, and industrial systems.
Package: MSOP-8 · 8 pins
Why does this need a breakout?
The 0.65mm pitch and tiny 3×3mm form factor make hand soldering challenging and impractical for breadboard prototyping. A breakout board converts this compact SMD package into a standard header layout, enabling reliable connections and rapid iteration without specialized soldering equipment or rework risk.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Texas Instruments |
| Part Number | PCA9306DCTR |
| Package | MSOP-8 |
| Pin Count | 8 |
| Channels per Circuit | 2 |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Output Type | Open Drain, Push-Pull |
| Voltage - VCCA | 1.2 V ~ 3.3 V |
| Voltage - VCCB | 1.8 V ~ 5.5 V |
What's Included
BILL OF MATERIALS
- 1x PCA9306DCTR soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers
Breakout Board Design
PCB SPECIFICATIONS
