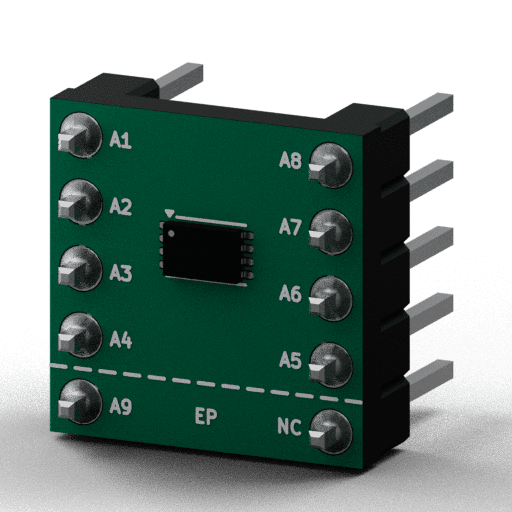

MX25R4035FZUIL0 Breakout
IC FLASH 4MBIT SPI/QUAD 8USON
View in 3D
£3.67
Out of stock
FREE UK SHIPPING on orders over £30
Estimated dispatch time will be calculated after checkout and emailed to you as soon as possible.
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Ultra-low power 4Mbit serial NOR flash memory with SPI and Quad I/O support. Operates from 1.65V to 3.6V and features program/erase suspend-resume capability, unique ID, and secure OTP. Ideal for embedded systems, IoT devices, and portable applications requiring minimal power consumption.
Package: USON-8-1EP (3×2mm, EP) · 8 pins
Why does this need a breakout?
Hand-soldering 0.5mm pitch USON is tedious and error-prone; a breakout board with standard 2.54mm headers lets you prototype on breadboards without reflow. The tiny 3×2mm package also makes direct integration risky during development. This board bridges the gap between evaluation and production.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Macronix |
| Part Number | MX25R4035FZUIL0 |
| Package | USON-8-1EP (3×2mm, EP) |
| Pin Count | 8 |
| Clock Frequency | 33 MHz |
| Memory Interface | SPI - Quad I/O |
| Memory Size | 4Mbit |
| Voltage - Supply | 1.65V ~ 3.6V |
What's Included
BILL OF MATERIALS
- 1x MX25R4035FZUIL0 soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

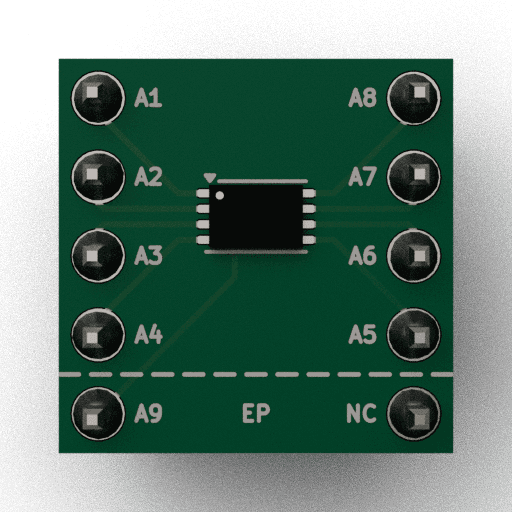

Breakout Board Design
PCB SPECIFICATIONS
