LD1117S33CTR
IC REG LINEAR 3.3V 800MA SOT-223
STMicroelectronics
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Low-dropout linear voltage regulator providing fixed 3.3V output at up to 800mA in a compact SOT-223 surface-mount package. Features 1V typical dropout voltage, ±1% output accuracy at 25°C, internal current and thermal limiting, and requires only a 10µF stabilization capacitor. Ideal for battery-powered and space-constrained applications requiring regulated 3.3V rails.
Package: SOT-223-3 · 3 pins
Why does this need a breakout?
SOT-223 three-pin regulators and transistors are difficult to hand-solder due to tight 1.5mm pitch and heat-sinking requirements. A breakout board brings standard 0.1" header spacing, eliminating soldering challenges and enabling immediate breadboard prototyping without rework or micro-soldering tools.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | STMicroelectronics |
| Part Number | LD1117S33CTR |
| Package | SOT-223-3 |
| Pin Count | 3 |
| Current - Output | 800mA |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
What's Included
BILL OF MATERIALS
- 1x LD1117S33CTR soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

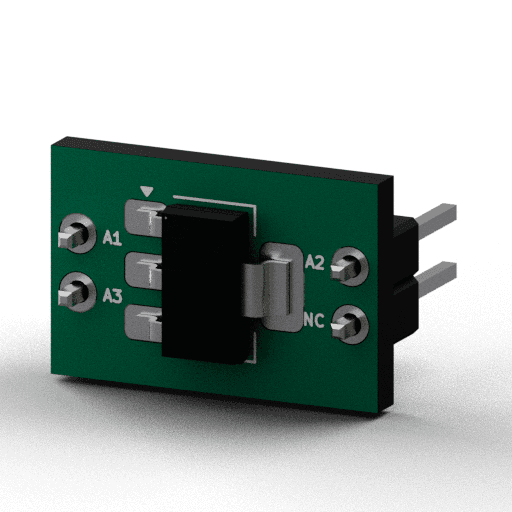

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
