L78L05ABUTR
IC REG LINEAR 5V 100MA SOT89-3
STMicroelectronics
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Fixed-voltage linear regulator delivering 5V at up to 100mA output current in a compact SOT-89 package. Features internal current limiting and thermal shutdown protection with ±4% voltage accuracy. Requires no external components and is ideal for local point-of-load regulation, noise elimination, and low-power supply applications.
Package: SOT-89-3 · 3 pins
Why does this need a breakout?
SOT-89-3 is too small and has leads too close together to hand-solder reliably or plug into breadboards. A breakout board spaces the three pins to standard 0.1" pitch, making it compatible with solderless prototyping and eliminating the need for fine-pitch soldering skills. Essential for rapid development with voltage regulators, transistors, and other common three-terminal devices.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | STMicroelectronics |
| Part Number | L78L05ABUTR |
| Package | SOT-89-3 |
| Pin Count | 3 |
| Current - Output | 100mA |
| Current - Supply (Max) | 6 mA |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
What's Included
BILL OF MATERIALS
- 1x L78L05ABUTR soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

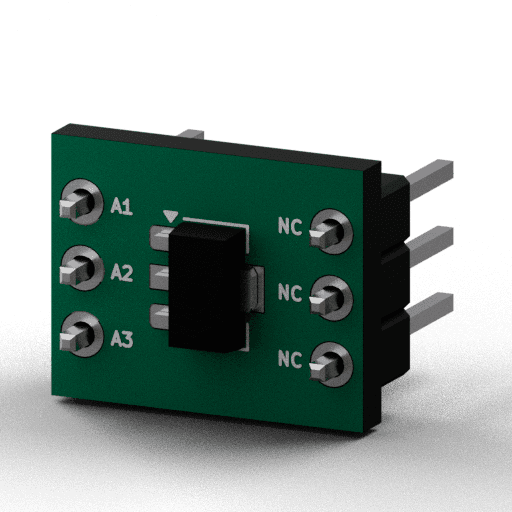

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
