HT7130S
LDO REG 3V 100MA 30V INPUT SOT23
UMW
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Low-dropout linear regulator IC with 3V fixed output, 100mA maximum output current, and up to 30V input voltage tolerance. Features ultra-low quiescent current (≤3µA) and minimal dropout voltage (~0.1V typical), making it ideal for battery-powered and communication equipment requiring high-voltage input capability with tight voltage regulation (±3% accuracy).
Package: SOT-23-3 · 3 pins
Why does this need a breakout?
SOT-23's tiny 0.95mm pin pitch and compact form factor make hand-soldering tedious and prone to bridging errors. A breakout board breaks out the three pins to standard 0.1" spacing for breadboard prototyping, eliminating the need for specialized soldering equipment and enabling fast circuit iteration with transistors, diodes, and small-signal components.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | UMW |
| Part Number | HT7130S |
| Package | SOT-23-3 |
| Pin Count | 3 |
| Current - Output | 100mA |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3V |
What's Included
BILL OF MATERIALS
- 1x HT7130S soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

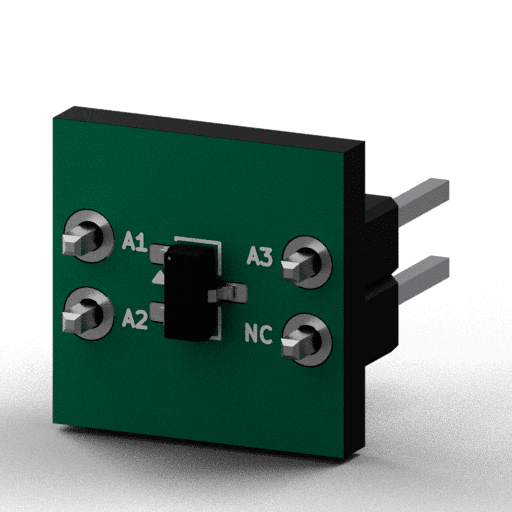

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
