FSUSB42MUX
USB SWITCH DPDT HIGH-SPEED 480MBPS 10MSOP
onsemi
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Bidirectional DPDT USB 2.0 switch IC for multiplexing high-speed (480 Mbps) or full-speed (12 Mbps) sources. Features 3.7 pF on-capacitance, 3.9 Ω on-resistance, >720 MHz bandwidth, and ultra-low 1 μA maximum power consumption. Ideal for portable devices requiring USB port sharing in cell phones, PDAs, cameras, and notebooks.
Package: MSOP-10 (P0.5mm) · 10 pins
Why does this need a breakout?
The 0.5mm pin pitch makes hand soldering impractical without specialized equipment, and the tiny 3x3mm footprint cannot connect directly to breadboards. A breakout board brings these pins to standard 0.1-inch spacing, enabling rapid prototyping of analog-to-digital converters, boost controllers, and audio switches without reflow soldering or custom PCBs.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | onsemi |
| Part Number | FSUSB42MUX |
| Package | MSOP-10 (P0.5mm) |
| Pin Count | 10 |
| Number of Channels | 1 |
| On-State Resistance (Max) | 6.5Ohm |
| Switch Circuit | DPDT |
| Voltage - Supply, Single (V+) | 2.4V ~ 4.4V |
What's Included
BILL OF MATERIALS
- 1x FSUSB42MUX soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

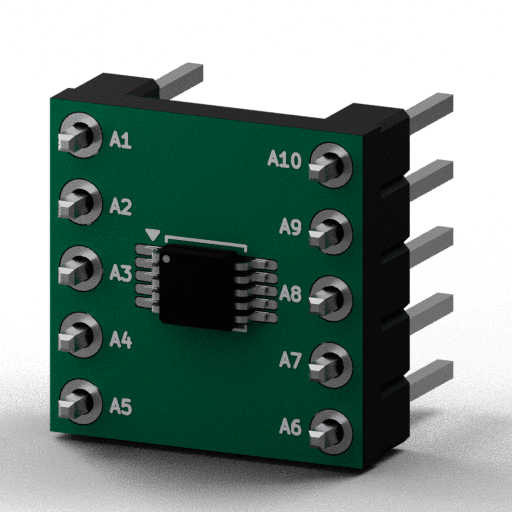

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
