EL0631(TA)
OPTOISO 2CH 3.75KV 10MBPS OPN COLL 8SOP
Everlight Electronics Co Ltd
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Dual-channel photocoupler integrating infrared LEDs optically coupled to high-speed photodetector logic gates with open-collector outputs. Provides 3750V RMS isolation voltage and supports 10 Mbit/s data rates with 10 kV/μs common-mode transient immunity. Ideal for ground loop elimination, logic level translation, and signal isolation in switching power supplies and data transmission applications.
Package: SOIC-8 (3.9×4.9mm) · 8 pins
Why does this need a breakout?
An 8-pin SOIC with 1.27mm pitch is too fine for breadboards and hand-soldering without a microscope. A breakout board routes these pins to standard 0.1" headers, enabling rapid prototyping and reliable connections for op-amps, transceivers, and small power MOSFETs without requiring reflow equipment.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Everlight Electronics Co Ltd |
| Part Number | EL0631(TA) |
| Package | SOIC-8 (3.9×4.9mm) |
| Pin Count | 8 |
| Current - DC Forward (If) (Max) | 20mA |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Input Type | DC |
| Number of Channels | 2 |
| Output Type | Open Collector |
| Rise / Fall Time (Typ) | 40ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.4V |
What's Included
BILL OF MATERIALS
- 1x EL0631(TA) soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

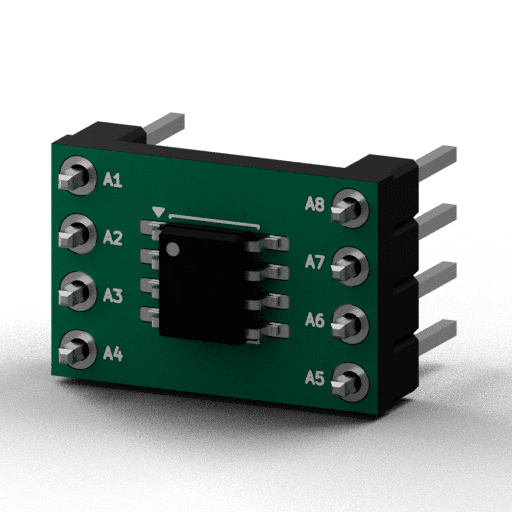

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
