CD4504BPWR

About This Component

Unidirectional voltage level translator for converting logic signals between different voltage domains. Designed for single-supply operation with inputs ranging from 0V to higher supply voltages, making it suitable for interfacing between 3.3V and 5V logic systems. Commonly used in mixed-voltage applications requiring bidirectional signal translation with low power consumption.

Why does this need a breakout?

The 0.65mm pitch makes hand soldering difficult and error-prone; a breakout board lets you solder standard headers instead. This package hosts precision analog and mixed-signal ICs like DACs and ADCs that benefit from clean PCB layouts and decoupling placement. Prototyping becomes faster with breadboard-compatible pin headers, eliminating the need for a custom carrier PCB.

Specifications

ELECTRICAL CHARACTERISTICS

What's Included

BILL OF MATERIALS

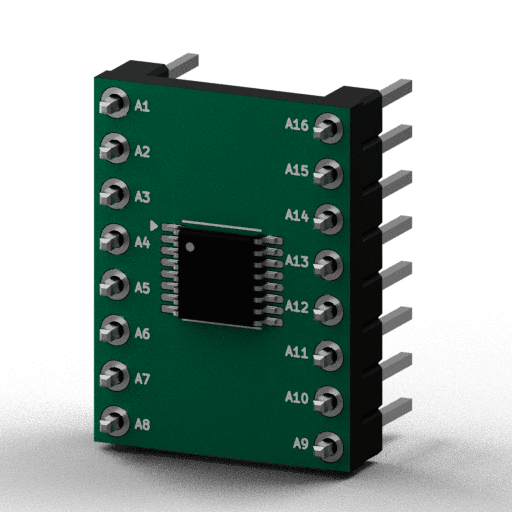

• 1x CD4504BPWR soldered onto breakout PCB
• Pin headers pre-soldered (2.54mm / 0.1" pitch)
• All IC pins broken out to 2.54mm headers
