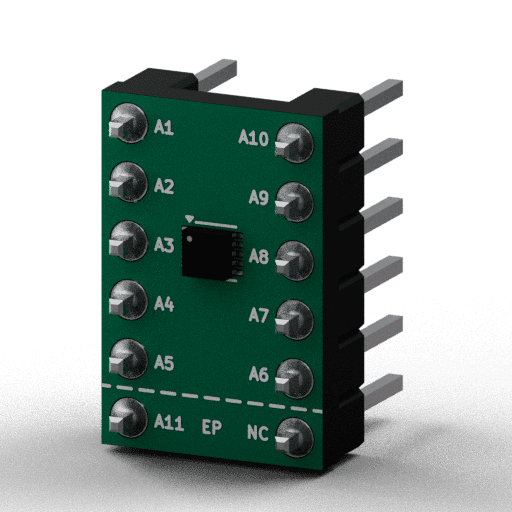

BQ24040DSQR Breakout
IC BATT CHG LI-ION 1A 10-WSON
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Single-cell Li-Ion/Li-Pol battery charger with 1A charging capability in a compact 2x2mm WSON-10 package. Features programmable charge current and termination thresholds, input overvoltage protection up to 30V, and integrated thermal management with 125°C regulation and 150°C shutdown. Ideal for space-constrained portable devices including TWS earbuds, smartwatches, and wireless speakers.
Package: WSON-10-1EP (2×2mm, EP) · 10 pins
Why does this need a breakout?
The 0.4 mm pitch and sub-2 mm package make this dual LDO regulator impossible to hand-solder or prototype on breadboards. A breakout board exposes all ten pins to standard 0.1" spacing, enabling reliable evaluation of the TLV751's dual 500-mA outputs and adjustable voltage ranges without specialized equipment.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Texas Instruments |
| Part Number | BQ24040DSQR |
| Package | WSON-10-1EP (2×2mm, EP) |
| Pin Count | 10 |
| Battery Chemistry | Lithium Ion/Polymer |
| Charge Current - Max | 1A |
| Number of Cells | 1 |
| Voltage - Supply (Max) | 28V |
What's Included
BILL OF MATERIALS
- 1x BQ24040DSQR soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

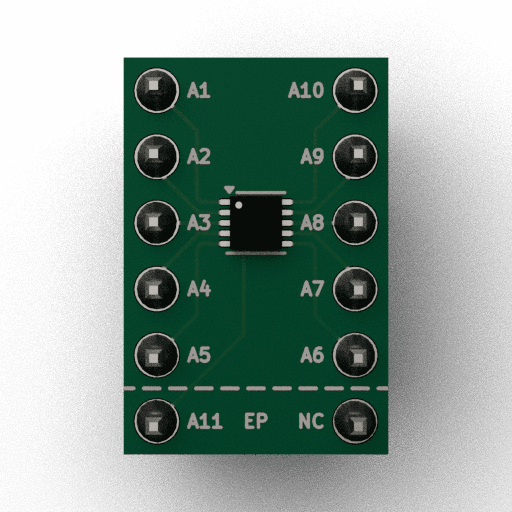

Breakout Board Design
PCB SPECIFICATIONS
