BD63006MUV-E2 Breakout
IC MOTOR DRIVER 8V-28V 2A VQFN-20
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Brushed DC motor driver IC supporting 8V to 28V supply range with 2A output current capability. Integrated H-bridge topology enables bidirectional motor control with PWM speed regulation. VQFN-20 package offers compact form factor suitable for robotics, industrial automation, and consumer motor applications requiring space-constrained designs.
Package: VQFN-24-1EP (4×4mm, EP) · 24 pins
Why does this need a breakout?
This 0.5mm pitch QFN-24 package requires a breakout board to prototype effectively — hand soldering the fine-pitch pads is impractical, and the bottom-side exposed pad cannot be accessed on breadboards. A breakout routes the 24 pins to standard headers, enabling rapid testing of multi-channel DACs, ADCs, VCOs, and other analog signal processors without reflow equipment.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Rohm Semiconductor |
| Part Number | BD63006MUV-E2 |
| Package | VQFN-24-1EP (4×4mm, EP) |
| Pin Count | 24 |
| Current - Output | 1.5A |
| Interface | Logic |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Output Configuration | Half Bridge (3) |
| Voltage - Load | 8V ~ 28V |
| Voltage - Supply | 8V ~ 28V |
What's Included
BILL OF MATERIALS
- 1x BD63006MUV-E2 soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

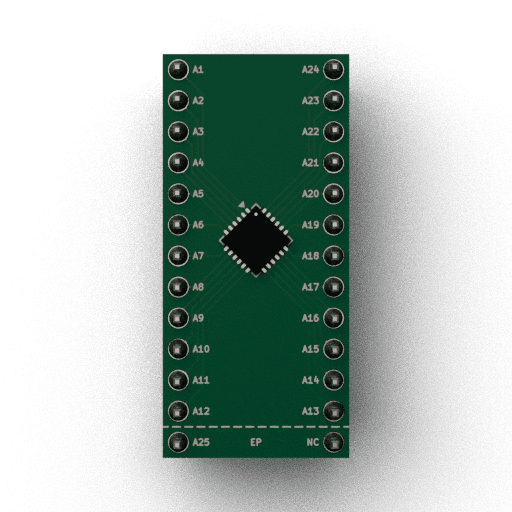

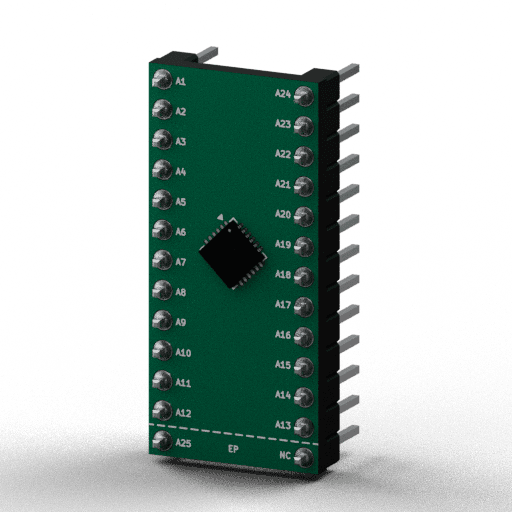

Breakout Board Design
PCB SPECIFICATIONS
