ACPL-217-500E
OPTOISOLATOR 3.75KV 1CH TRANSISTOR 4SO
Broadcom Limited
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Single-channel optoisolator with 3.75kV isolation voltage rating in a 4-lead SO package. Integrates a photodiode input stage with a phototransistor output stage for galvanic isolation of low-level signals. Commonly used in power supply feedback circuits, motor control interfaces, and industrial isolation applications requiring high voltage separation between input and output sides.
Package: SOIC-4-6 (4.4×3.6mm) · 4 pins
Why does this need a breakout?
This Toshiba optocoupler's 1.27mm pitch and compact 4.4×3.6mm footprint make hand-soldering impractical and breadboard use impossible. A breakout board converts the SMD package to through-hole pins or larger pads, enabling rapid prototyping and reliable connections in isolation and control circuits without reflow equipment.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Broadcom Limited |
| Part Number | ACPL-217-500E |
| Package | SOIC-4-6 (4.4×3.6mm) |
| Pin Count | 4 |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 50mA |
| Input Type | DC |
| Number of Channels | 1 |
| Output Type | Transistor |
| Rise / Fall Time (Typ) | 2µs, 3µs |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 3750Vrms |
What's Included
BILL OF MATERIALS
- 1x ACPL-217-500E soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

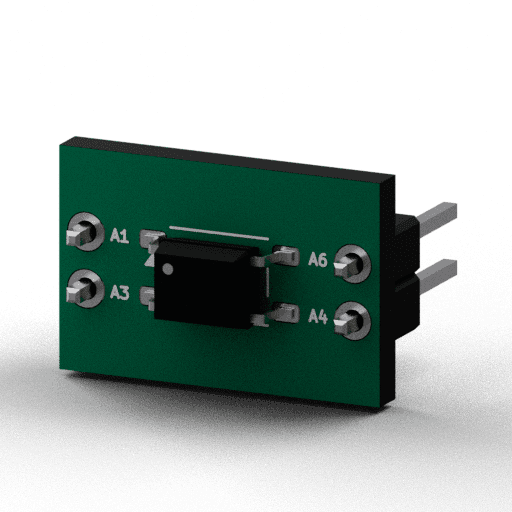

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
