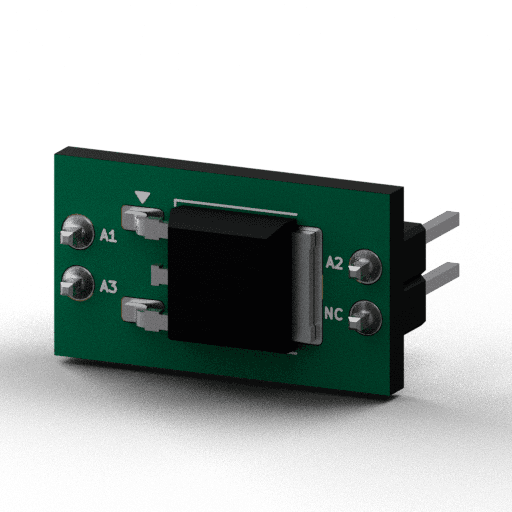

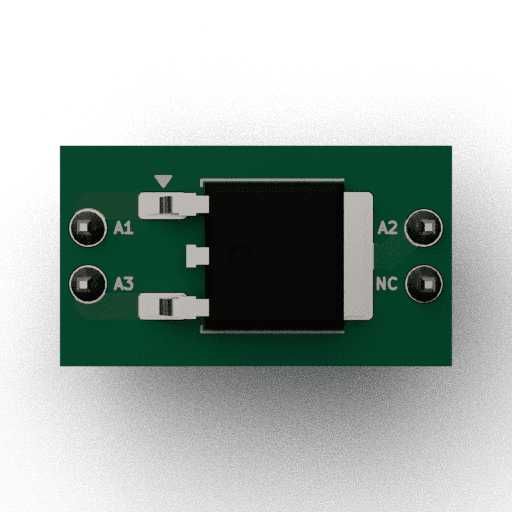

78D08L Breakout
IC REG LINEAR 8V 1A TO-252
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Fixed-output positive linear voltage regulator delivering 1A at 8V in TO-252 (DPAK) surface-mount package. Features thermal overload and short-circuit protection with 10V maximum input rating. Suitable for low-power supply applications requiring regulated 8V output.
Package: TO-252-2 · 3 pins
Why does this need a breakout?
This 3-pin SMD package is difficult to hand-solder due to tight pin spacing and thermal requirements typical of power switching applications. A breakout board breaks out each pin to standard headers, enabling reliable breadboard prototyping and reducing cold-joint risk during development without needing a reflow oven or hot air station.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | UMW |
| Part Number | 78D08L |
| Package | TO-252-2 |
| Pin Count | 3 |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 8 mA |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Voltage Dropout (Max) | 2V @ 350mA |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 8V |
What's Included
BILL OF MATERIALS
- 1x 78D08L soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers
Breakout Board Design
PCB SPECIFICATIONS
