74LVC2G04GW,125
IC INVERTER DUAL 1.65-5.5V 6-TSSOP
Nexperia USA Inc.

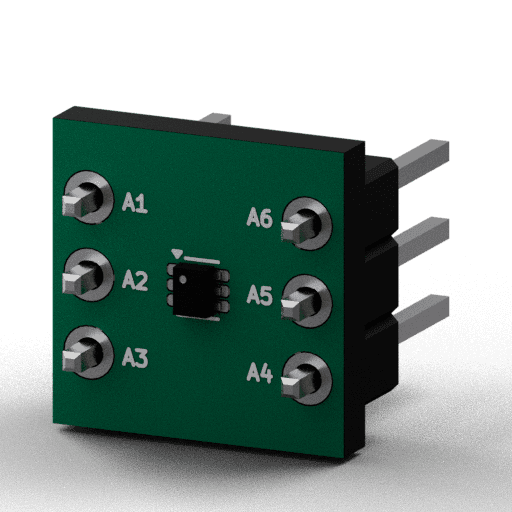

View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
The 74LVC2G04 is a dual inverter logic gate providing two independent NOT functions in a compact 6-pin package. It operates across a wide supply range of 1.65V to 5.5V with overvoltage-tolerant inputs, Schmitt-trigger hysteresis for noise immunity, and ±24mA output drive. Ideal for voltage-level translation between mixed 3.3V and 5V logic systems, with IOFF power-down protection and ESD ratings exceeding 2kV.
Package: SOT-363 · 6 pins
Why does this need a breakout?
The SOT-563's 1.27mm pin pitch and small footprint make hand-soldering difficult and breadboard prototyping impossible. A breakout board brings these pins to standard 0.1" spacing, enabling quick breadboard integration for dual transistors, level shifters, and compact buck converters without requiring SMD soldering skills or microscopy.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Nexperia USA Inc. |
| Part Number | 74LVC2G04GW,125 |
| Package | SOT-363 |
| Pin Count | 6 |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Voltage - Supply | 1.65V ~ 5.5V |
What's Included
BILL OF MATERIALS
- 1x 74LVC2G04GW,125 soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers
Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
