74LVC1T45W6-7
IC XLTR BIDIR 1.65-5.5V SOT26
Diodes Incorporated
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Single-bit dual-supply level translator with tri-state outputs for voltage domain conversion between 1.65V and 5.5V. Features direction-controlled bidirectional translation via DIR pin, ±24mA output drive, and IOFF power-down isolation. Ideal for mixed-voltage systems in mobile, computing, and consumer electronics requiring logic interfacing across different supply rails.
Package: SOT-23-6 · 6 pins
Why does this need a breakout?
SOT-23-6 packages house precision regulators, voltage references, and level shifters with 0.95mm pin pitch—too fine for hand soldering and incompatible with breadboards. A breakout board provides through-hole headers for prototype work, eliminating soldering difficulty while enabling quick circuit iteration. Essential for developing with compact analog and power management ICs.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Diodes Incorporated |
| Part Number | 74LVC1T45W6-7 |
| Package | SOT-23-6 |
| Pin Count | 6 |
| Channels per Circuit | 1 |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Output Type | Tri-State, Non-Inverted |
| Voltage - VCCA | 1.65 V ~ 5.5 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
What's Included
BILL OF MATERIALS
- 1x 74LVC1T45W6-7 soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

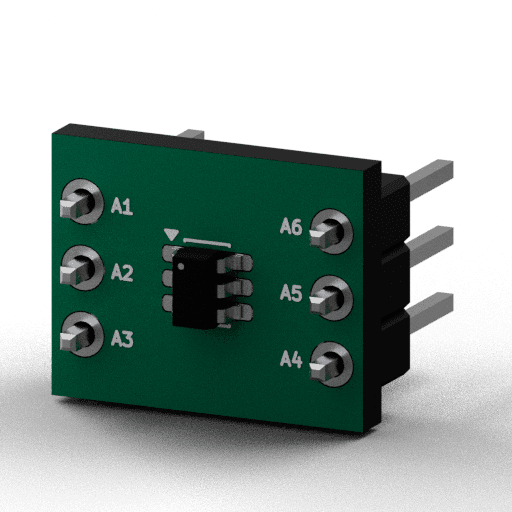

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
