74LVC1G08SE-7
LOGIC AND GATE 2-INPUT 1.65-5.5V SOT353
Diodes Incorporated
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Single 2-input AND gate logic IC with standard push-pull output operating from 1.65V to 5.5V. Delivers ±24mA output drive at 3.3V with CMOS low-power consumption and IOFF circuitry for partial power-down support. 5.5V-tolerant inputs enable mixed-voltage applications and direct TTL interfacing.
Package: SOT-353 · 5 pins
Why does this need a breakout?
SOT-553 packages like single-gate logic and LDO regulators are too small and fine-pitched for reliable hand-soldering or breadboard use. A breakout board brings these components to standard headers, enabling quick prototyping without reflow equipment. Essential for evaluating compact logic functions and power management ICs in development.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Diodes Incorporated |
| Part Number | 74LVC1G08SE-7 |
| Package | SOT-353 |
| Pin Count | 5 |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Voltage - Supply | 1.65V ~ 5.5V |
What's Included
BILL OF MATERIALS
- 1x 74LVC1G08SE-7 soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

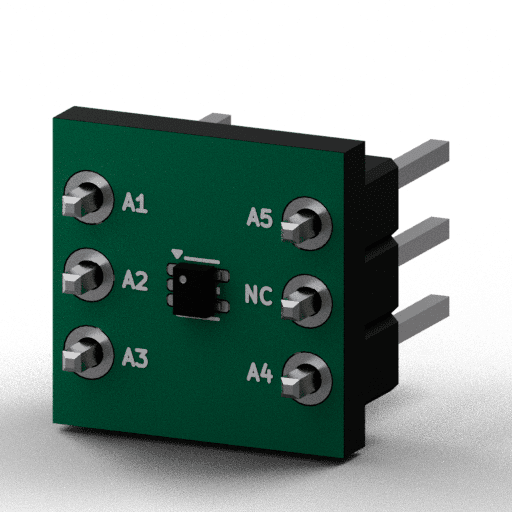

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
