74HC595D
IC SHIFT REGISTER 8BIT 3-STATE 16-SOIC
Toshiba Semiconductor and Storage
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
8-bit shift register with integrated storage latch and 3-state outputs. Converts serial data to parallel using independent shift clock (SCK) and register clock (RCK) inputs. Operates at up to 55 MHz with low power CMOS technology and supports 2V to 6V supply range. Commonly used for serial-to-parallel data conversion, LED matrix drivers, and I/O expansion.
Package: SOIC-16 (3.9×9.9mm) · 16 pins
Why does this need a breakout?
The 1.27mm pin pitch on this 16-pin package makes hand-soldering impractical and breadboard mounting impossible. A breakout board brings the pins to standard 2.54mm spacing, enabling quick prototyping of RS-232/RS-485 transceivers, ADCs, and line drivers without requiring surface-mount soldering skills or PCB fabrication.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Toshiba Semiconductor and Storage |
| Part Number | 74HC595D |
| Package | SOIC-16 (3.9×9.9mm) |
| Pin Count | 16 |
| Logic Type | Shift Register |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Output Type | Tri-State |
| Voltage - Supply | 2V ~ 6V |
What's Included
BILL OF MATERIALS
- 1x 74HC595D soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

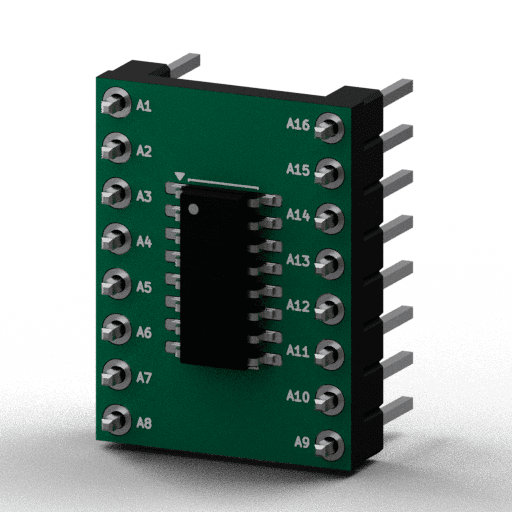

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
