74HC164PW,118
IC SHIFT REG 8BIT SERIAL-IN/PARALLEL-OUT 14TSSOP
Nexperia USA Inc.
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
8-bit serial-in, parallel-out shift register with two gated serial data inputs (DSA, DSB) and eight parallel outputs (Q0-Q7). Features asynchronous master reset, operates from 2.0V to 6.0V supply, and includes clamp diodes for overvoltage interface protection. Commonly used for serial-to-parallel data conversion, LED displays, and parallel output expansion in digital circuits.
Package: TSSOP-14 (4.4×5mm) · 14 pins
Why does this need a breakout?
The 0.65mm pitch on this 14-pin package makes hand soldering tedious and error-prone without magnification and fine tools. A breakout board routes each pin to standard 0.1-inch headers, enabling breadboard prototyping and simplifying connections for LIN transceivers, ADCs, digital potentiometers, and microcontrollers that typically come in this footprint.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Nexperia USA Inc. |
| Part Number | 74HC164PW,118 |
| Package | TSSOP-14 (4.4×5mm) |
| Pin Count | 14 |
| Logic Type | Shift Register |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Output Type | Push-Pull |
| Voltage - Supply | 2V ~ 6V |
What's Included
BILL OF MATERIALS
- 1x 74HC164PW,118 soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

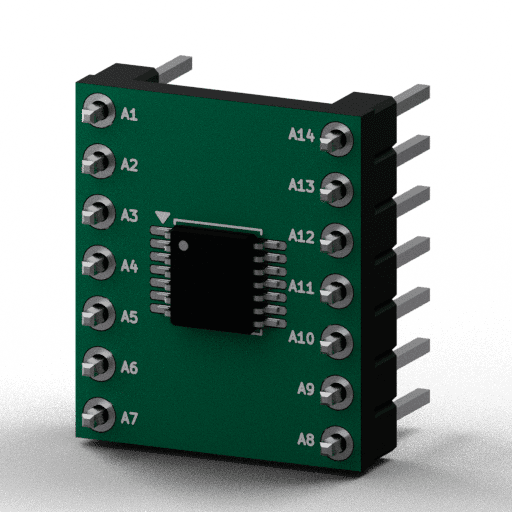

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
