74HC04D
HEX INVERTER 6CH CMOS 6NS 14SOIC
Toshiba Semiconductor and Storage

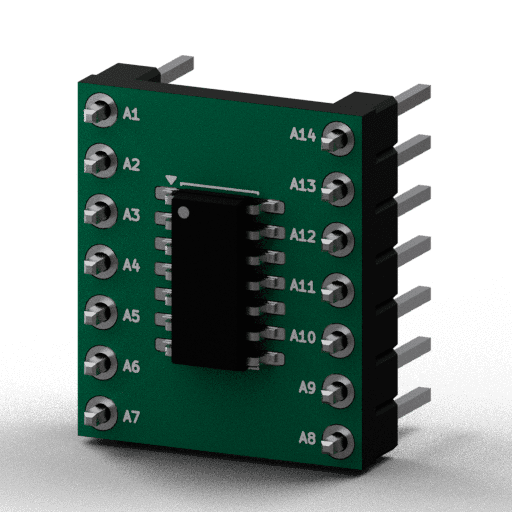

View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
High-speed CMOS hex inverter with six independent inverter gates in a 14-pin SOIC package. Offers 6 ns typical propagation delay at 5V with low power consumption (1µA max) and operates across 2.0-6.0V supply range. Suitable for logic signal inversion, buffering, and digital control applications requiring fast switching with minimal power draw.
Package: SOIC-14 (3.9×8.7mm) · 14 pins
Why does this need a breakout?
Manual soldering of 1.27mm pitch SOIC-14 leads is tedious and error-prone; a breakout board eliminates this with pre-soldered pads and convenient 0.1-inch headers for breadboard prototyping. Ideal for developing capacitive touch sensor applications or other logic circuits without the fine-pitch assembly hassle.
Specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Toshiba Semiconductor and Storage |
| Part Number | 74HC04D |
| Package | SOIC-14 (3.9×8.7mm) |
| Pin Count | 14 |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Voltage - Supply | 2V ~ 6V |
What's Included
BILL OF MATERIALS
- 1x 74HC04D soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers
Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
