6N137SDM Breakout
OPTOCOUPLER 5KV 10MBPS OPEN COLL 8-SMD

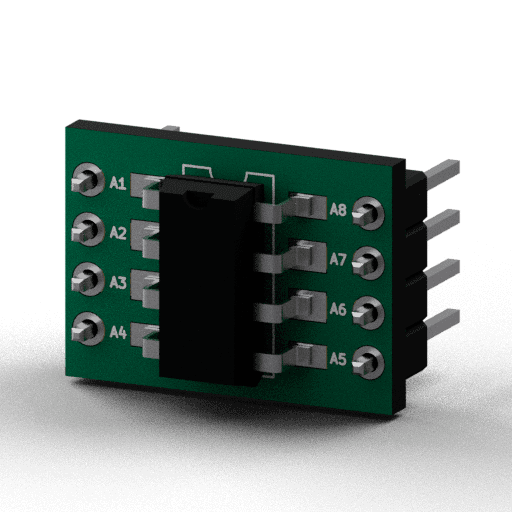

View in 3D
£4.40
Out of stock
FREE UK SHIPPING on orders over £30
Estimated dispatch time will be calculated after checkout and emailed to you as soon as possible.
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
High-speed optocoupler with 850nm LED optically coupled to integrated photodetector logic gate. Features 10 MBit/s switching, 5kV isolation, open-collector strobable output, and superior 5kV/µs common-mode rejection. 13mA minimum sink current with 8 fan-out capability. Ideal for ground loop elimination, logic interface isolation, and switching power supplies.
Package: SOPW-8 (6.605mm wide, P2.54mm) · 8 pins
Why does this need a breakout?
SMD soldering of fine 2.54mm pitch makes hand assembly error-prone and tedious; a breakout board lets you solder once to castellated or standard pads, then prototype freely on breadboard or with thicker wire. Essential for optical isolators, mixed-signal converters, and amplifier ICs where you need reliable connections without rework.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | onsemi |
| Part Number | 6N137SDM |
| Package | SOPW-8 (6.605mm wide, P2.54mm) |
| Pin Count | 8 |
| Current - DC Forward (If) (Max) | 50mA |
| Current - Output / Channel | 50 mA |
| Data Rate | 10Mbps |
| Input Type | DC |
| Number of Channels | 1 |
| Output Type | Open Collector |
| Rise / Fall Time (Typ) | 30ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.45V |
What's Included
BILL OF MATERIALS
- 1x 6N137SDM soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers
Breakout Board Design
PCB SPECIFICATIONS
