TCMT1600 Breakout
OPTOCOUPLER AC 3.75KV 1CH PHOTOTRANS 4-SOP
View in 3D
£3.97
Out of stock
FREE UK SHIPPING on orders over £30.00
Estimated dispatch time will be calculated after checkout and emailed to you as soon as possible.
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Single-channel optocoupler with phototransistor output and AC input capability, offering 3.75 kV RMS isolation. Features low coupling capacitance (0.3 pF typical), wide temperature range operation, and CTR of 80–300%. Suitable for programmable logic controllers and industrial isolation applications requiring certified safety performance.
Package: SOIC-4-6 (4.4×3.6mm) · 4 pins
Why does this need a breakout?
This Toshiba optocoupler's 1.27mm pitch and compact 4.4×3.6mm footprint make hand-soldering impractical and breadboard use impossible. A breakout board converts the SMD package to through-hole pins or larger pads, enabling rapid prototyping and reliable connections in isolation and control circuits without reflow equipment.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Vishay Semiconductor Opto Division |
| Part Number | TCMT1600 |
| Package | SOIC-4-6 (4.4×3.6mm) |
| Pin Count | 4 |
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Output / Channel | 50mA |
| Input Type | AC, DC |
| Number of Channels | 1 |
| Output Type | Transistor |
| Rise / Fall Time (Typ) | 3µs, 4.7µs |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Voltage - Isolation | 3750Vrms |
| Voltage - Output (Max) | 70V |
What's Included
BILL OF MATERIALS
- 1x TCMT1600 soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

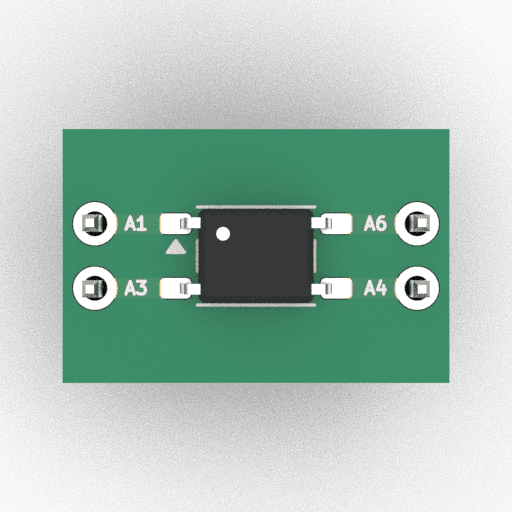

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
