IR2110STRPBF Breakout
GATE DRIVER HIGH/LOW SIDE 500V 2A 16SOIC
View in 3D
£7.79
Out of stock
FREE UK SHIPPING on orders over £30.00
Estimated dispatch time will be calculated after checkout and emailed to you as soon as possible.
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
High voltage half-bridge gate driver for MOSFETs and IGBTs with independent high and low side outputs. Operates up to 500V with 2A output current, 10-20V supply range, and 3.3V logic compatibility. Features matched propagation delays (10ns max), bootstrap-capable floating channel, and cycle-by-cycle shutdown for motor control, power conversion, and switching applications.
Package: SOIC-16W (7.5mm wide) · 16 pins
Why does this need a breakout?
SOIC-16W uses 1.27mm pitch and surface-mount construction, making it difficult to hand-solder and incompatible with breadboards. A breakout board converts the 16 pins to through-hole connectors, enabling direct breadboarding and eliminating soldering risk during prototyping of real-time clocks, transceivers, flash memory, and gate-drive optocouplers.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Infineon Technologies |
| Part Number | IR2110STRPBF |
| Package | SOIC-16W (7.5mm wide) |
| Pin Count | 16 |
| Channel Type | Independent |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Input Type | Non-Inverting |
| Number of Drivers | 2 |
| Rise / Fall Time (Typ) | 25ns, 17ns |
| Voltage - Supply | 3.3V ~ 20V |
What's Included
BILL OF MATERIALS
- 1x IR2110STRPBF soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

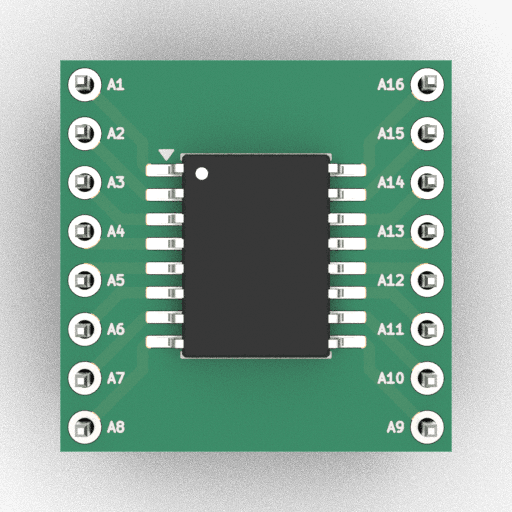

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
