BQ25173DSGR Breakout
IC BATT CHG SUPERCAP 800MA 1-4CELL 8WSON
View in 3D
£4.69
Out of stock
FREE UK SHIPPING on orders over £30.00
Estimated dispatch time will be calculated after checkout and emailed to you as soon as possible.
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
Linear charger IC for 1- to 4-cell supercapacitors with 800-mA maximum charge current and input voltage tolerance to 40V. Features programmable charge voltage and current via external resistors, integrated thermal regulation, and comprehensive fault protection including overvoltage, overcurrent, and short-circuit detection. Ideal for space-constrained applications like smart meters, barcode scanners, and portable medical equipment.
Package: DFN-8 (2×2mm) · 8 pins
Why does this need a breakout?
Hand-soldering 0.5mm pitch pads is extremely difficult without specialized equipment, and the exposed leads cannot access a breadboard. A breakout board with standard 0.1" headers lets you prototype high-voltage DC-DC converters like the MAX15062 without requiring reflow soldering or custom PCBs, making rapid iteration practical for industrial and sensor applications.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Texas Instruments |
| Part Number | BQ25173DSGR |
| Package | DFN-8 (2×2mm) |
| Pin Count | 8 |
| Battery Chemistry | Supercapacitor |
| Charge Current - Max | 800mA |
| Number of Cells | 1 ~ 4 |
| Voltage - Supply (Max) | 18V |
What's Included
BILL OF MATERIALS
- 1x BQ25173DSGR soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

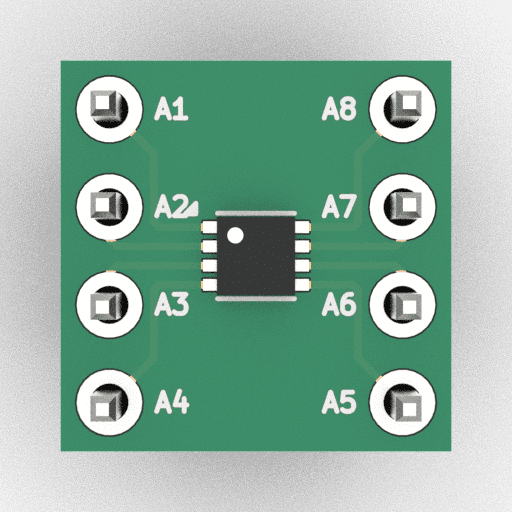

Breakout Board Design
PCB SPECIFICATIONS
WIDTH
< 0.9" (straddles breadboard)
PITCH
2.54mm standard
SOLDER
Lead-free, reflow assembled
FINISH
FR4, lead-free HASL
