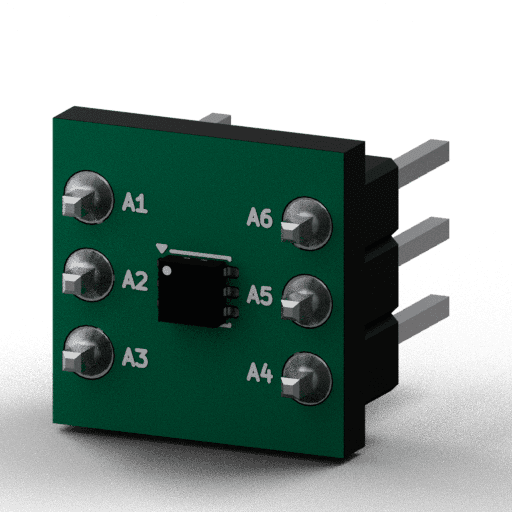

TPS25200DRVR Breakout
IC ELOAD 6% 6WSON
View in 3D
Want something different?
Bypass caps, pull-ups, strapping resistors, custom silkscreen & more
Design a Custom BoardAbout This Component
An electronic fuse/load switch IC in a 6-pin WSON package that provides overcurrent and overvoltage protection with 6% accuracy. Integrates power distribution and circuit protection functions for portable and automotive applications. Replaces traditional fuses with faster response times and integrated diagnostics.
Package: WSON-6-1EP (2×2mm, EP) · 6 pins
Why does this need a breakout?
WSON-6 regulators feature 0.65mm pitch pads that are difficult to hand-solder and buried under the package body, making them impossible to prototype on breadboards. A breakout board brings these compact LDO and boost converter ICs into reach by providing large through-hole connections and integrating decoupling capacitors, letting you evaluate multiple fixed or adjustable voltage outputs without rework challenges.
Component specifications
ELECTRICAL CHARACTERISTICS
| Manufacturer | Texas Instruments |
| Part Number | TPS25200DRVR |
| Package | WSON-6-1EP (2×2mm, EP) |
| Pin Count | 6 |
| Current - Output | 2.5A |
| Voltage - Input | 2.5V ~ 6.5V |
What's Included
BILL OF MATERIALS
- 1x TPS25200DRVR soldered onto breakout PCB
- Pin headers pre-soldered (2.54mm / 0.1" pitch)
- All IC pins broken out to 2.54mm headers

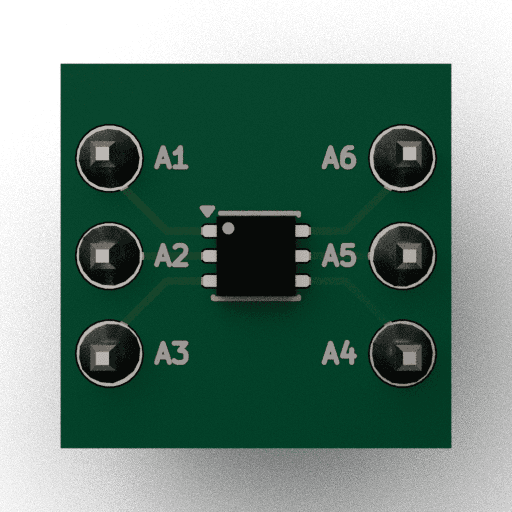

Breakout Board Design
PCB SPECIFICATIONS
